Framework rationale and scope
This framework provides a structured sequence for engineers charged with provisioning custom 10 kWh battery modules for high-frequency fleet charging hubs. It is written in a technical, precise register to support decision-making across specification, integration, and commissioning. Practitioners will find explicit checkpoints for electrical sizing, safety controls, and operational validation with a particular emphasis on repeatability for depot-scale implementation. Early on, consider the role of grid-edge BESS — BESS solutions often form the primary buffer between utility constraints and fast turnover charging schedules.
1 — Define the operational profile
Begin by quantifying duty cycle requirements: average energy per vehicle per shift, peak simultaneous draws, and desired turnaround time. Specify target metrics such as throughput (kWh/hour), maximum transient power, and acceptable state-of-charge (SoC) windows. Translate vehicle charging profiles into a baseline energy requirement per charger and scale to depot size. Include expected day-to-day variance and contingency for unplanned surges — these numbers drive cell chemistry selection and cycle life assumptions.
2 — Site and electrical assessment
Conduct a disciplined site audit that documents available service capacity, transformer headroom, fault currents, and existing protection schemes. Determine whether the installation will be AC- or DC-coupled and evaluate line-side upgrades versus on-site mitigation via storage. Assess thermal envelope, ventilation pathways, and physical routing for DC cabling. Ensure that inverter sizing, harmonics, and protection coordination are verified against utility interconnection requirements prior to finalizing the battery specification.
3 — Battery module specification
Select module characteristics to meet the operational profile: nominal capacity (10 kWh per module), permissible depth-of-discharge (DoD), target cycle life, C-rate capability, and expected round-trip efficiency. Define BMS requirements for cell balancing, SoC estimation, and alarm thresholds. Include thermal management expectations and maximum permissible ambient temperature. If modular redundancy is required, specify N+1 arrangements for both power and energy to preserve service during a single-module failure.
4 — Power electronics and controls
Specify inverter topology, converter control strategy, and the communications architecture (modbus, CAN, or IEC 61850). Define fast-acting controls for charge/discharge setpoints and peak-shaving logic. Integrate supervisory control for demand response and grid services where applicable. For fleet hubs with high turnover, active power control must prioritize charger availability while maintaining battery SoC within lifecycle-preserving envelopes.
5 — Safety, thermal management, and compliance
Detail safety systems: overcurrent devices, fire suppression approach, and battery enclosure ventilation. Define thermal management requirements—air-cooled or liquid-cooled—and thermal runaway mitigation protocols. Compliance mapping should list relevant standards (local electrical codes, UL/IEC battery standards) and site-specific emergency response plans. Consider how alarm escalation interfaces with operational staff and first responders.
6 — Integration, testing, and commissioning
Develop a test plan that covers factory acceptance tests (FAT), site acceptance tests (SAT), and a performance validation period under representative load. FATs should verify BMS functions, inverter behavior, and module interlocks. SATs must include charge/discharge cycling with actual chargers and logging for SoC drift and thermal performance. Collect baseline metrics: cycle efficiency, peak power delivery, and response latency to control signals. Establish acceptance criteria in writing to prevent scope disputes at handover.
Common pitfalls and mitigations
Engineers commonly underestimate three vectors: transient current demands from simultaneous chargers, the interaction between battery SoC management and charger controls, and the hidden costs of retrofitting older depots. Overlooking transient demand can lead to oversized inverters or unexpected curtailment. Misaligned SoC rules accelerate capacity fade. Retrofitting often reveals insufficient ventilation or constrained cable pathways — plan for contingency routing early. —
Real-world anchor: fleet depots and grid events
Practical deployments have illustrated these risks. City fleet pilots in Los Angeles and broader California electrification efforts during summer peak events (2020–2022) demonstrated the value of on-site energy buffering for maintaining charger uptime without costly utility upgrades. These deployments underscore that battery sizing and control logic materially affect operational availability when grid headroom is constrained.
Alternatives and trade-offs
Evaluate three architectures: centralized energy storage serving many chargers, distributed per-charger buffer modules, and hybrid solutions that mix stationary storage with controlled charging. Centralized BESS reduces per-unit cost and simplifies thermal management but increases single-point failure risk. Distributed buffers improve redundancy and localized resiliency but raise maintenance complexity. Choose based on maintenance capacity, required redundancy, and site constraints.
Summary of key integration checkpoints
Scale the 10 kWh module specification to duty cycle first, then align power electronics and BMS requirements. Verify thermal pathways and compliance early. Ensure FAT/SAT criteria are explicit and tested with actual chargers. These checkpoints reduce commissioning iterations and accelerate reliable operations while protecting cycle life.
Advisory: three golden rules for selection and deployment
1) Metric-first specification: quantify throughput, peak power, and acceptable SoC windows before choosing cells or inverters. 2) Test with real loads: require on-site acceptance testing using production chargers to validate interaction and latency. 3) Plan for redundancy: design modular N+1 capacity at both power and energy levels so maintenance does not degrade service.

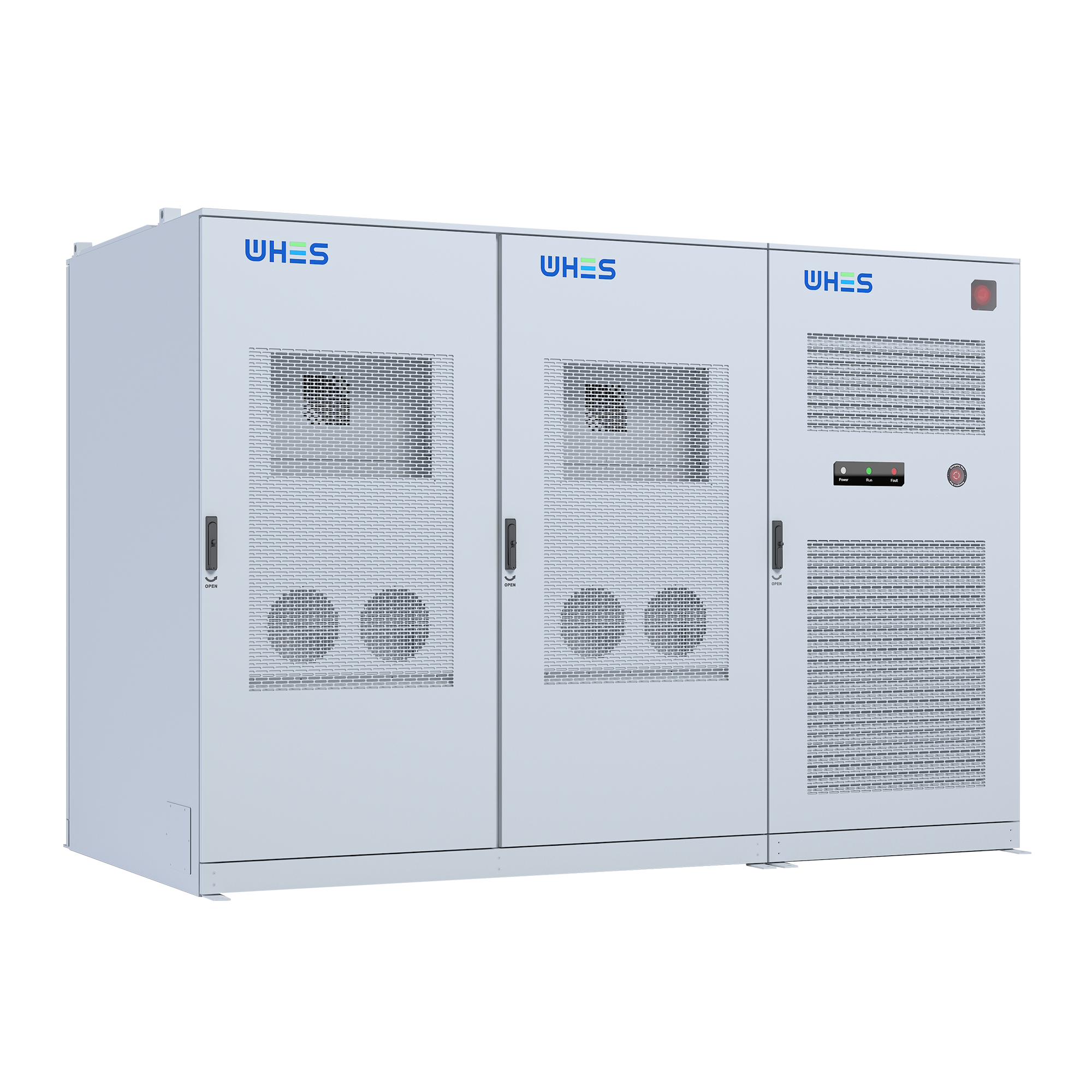

The integration logic culminates in choosing partners who can translate these requirements into robust, tested deployments — and that capability is central to WHES. —
