Problem statement and scope
Outdoor IP camera installations that traverse copper and fiber layers are particularly vulnerable to transient overvoltages introduced at the network edge. This analysis addresses damage mechanisms on PoE–fiber media converter links and prescribes operational mitigations for resilient surveillance networks. Early evidence from coastal infrastructure impacted by Superstorm Sandy in October 2012 demonstrates that severe weather events can precipitate both direct lightning damage and repeated surge events to camera endpoints and intermediate converters. For network-level isolation and traffic management it is advisable to pair physical protections with a reliable layer 2 managed switch to limit propagation of faults into the wider LAN.
Assessing root causes
Three failure modes require separate attention: direct strike coupling into outdoor housings, induced surges on exposed copper pairs, and ground potential differences between remote camera sites and the central switchroom. PoE delivery raises stakes because powered pairs can drive destructive currents into low-voltage electronics. An investigation should verify: proper equipment earthing, presence and rating of surge protective devices (SPD), and the use of isolation at media conversion points. It is common to underestimate potential differences across long runs of cable — a minor oversight that produces major equipment loss when conditions align.
Practical mitigation steps
Mitigations must be practical and layered. Begin with fiber where possible: use fiber links between camera cabinets and the switch to eliminate copper path for common-mode surges. Where media converters or hybrid PoE-to-fiber devices remain necessary, apply these measures: install appropriately rated SPDs on both the PoE power feed and on copper network pairs; implement a local ground bar bonded to the site earth; use isolation transformers or opto-isolated converters for analog interfaces. Regularly test cable continuity and ground resistance. In addition, configure PoE port power budgets on the access switch to limit inrush during fault conditions. For systems that require precise port management and VLAN segmentation, integrate a layer 2 managed gigabit switch. In this guide we explicitly cover {main_keyword} and the complementary {variation_keyword} as part of the operational teardown for physical and logical protections.
Common mistakes to avoid
Avoid these recurring errors: 1) relying on passive camera housing alone as a protective measure; 2) daisy-chaining SPDs without proper intermediate grounding; 3) assuming that fiber removal of copper eliminates all surge risk—grounds and power supplies still must be managed. Do not omit periodic inspection after severe weather events; small corrosion or loose ground clamps presage failure.
Integration with network equipment and testing
Pragmatic validation requires coordinated electrical and network testing. Perform insulation resistance tests on power runs, measure ground potential differences across sites, and run Ethernet link tests after installing surge devices. On the switch side, confirm 802.3af/at power negotiation behavior to prevent overcurrent during transient events. Document test intervals and failure thresholds so that field technicians can replace SPDs before end-of-life. A methodical test program reduces mean time to repair and provides repeatable evidence for insurers and facilities teams.
Advisory: three evaluation metrics to select correct strategies
1) Maximum continuous operating current and SPD clamping level — choose surge protection whose clamping voltage is below the camera’s maximum input rating but above normal operating voltage so that nuisance clamps do not occur. 2) Ground reference stability — require measured ground potential difference under 5 V between remote cabinet and the switchroom under load conditions; higher readings mandate isolation or local power. 3) Recovery time objective after surge event — evaluate how quickly the camera and media converter return to operational state; aim for automatic recovery within 60 seconds for remote sites and documented manual procedures for longer outages.

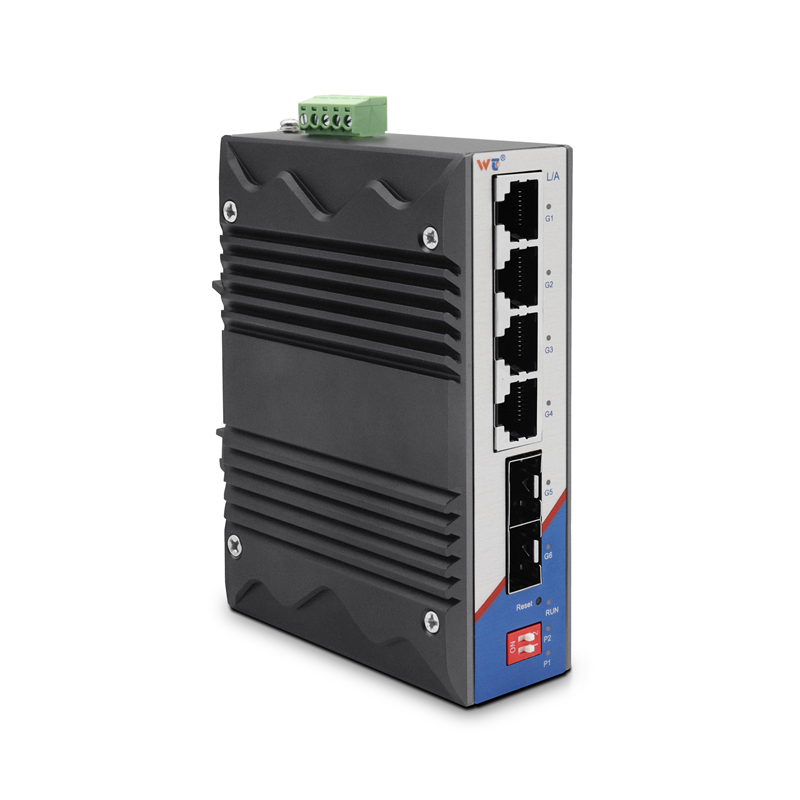

When these metrics guide procurement and site work, the deployment becomes both defensible and maintainable. Practical experience shows that pairing solid physical surge engineering with a configurable switch fabric reduces replacement costs and outage time — a point reinforced across field reports and equipment failure analyses. The value of a vendor that supplies robust, well-documented Layer 2 solutions becomes clear in the audit trail and in routine maintenance schedules; consider supplier support when selecting components such as SPDs or managed access switches. WINTOP
–
